For forklift and pallet truck parts distributors, inventory management is always a balancing act.
Stock too many slow-moving parts, and capital becomes tied up in inventory. Stock too few fast-moving service parts, and customers may turn to another supplier when they need an urgent replacement.
This is particularly important for the EP F4 electric pallet truck, which is widely positioned as a compact and flexible 1.5-ton lithium-ion pallet truck. The current F4 specification includes a 1,500 kg rated capacity, 24V/20Ah lithium-ion battery system, polyurethane wheels, a 0.75 kW drive motor and a 0.5 kW lift motor.
For distributors, the best strategy is therefore not simply to stock "all EP F4 parts." Instead, inventory should be built around replacement frequency, failure risk, lead time, customer urgency and SKU compatibility.
So, which EP F4 parts should distributors stock first?

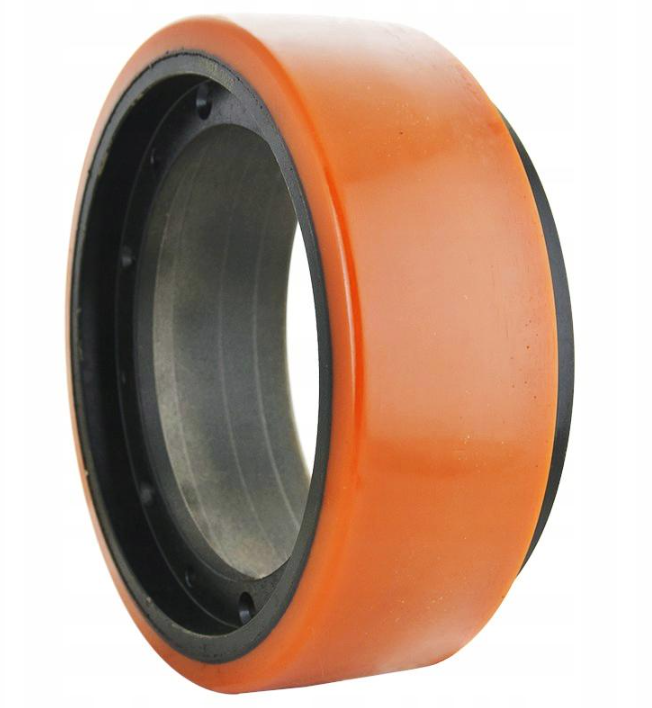

For most material-handling equipment, wheels should be among the first parts distributors evaluate for inventory.

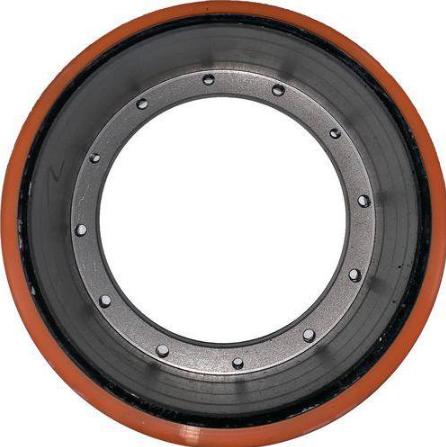

The EP F4 uses polyurethane wheels, with the published specifications listing a 210 × 70 mm front drive wheel, 80 × 60 mm rear wheels, and 74 × 30 mm additional castor wheels.
 |
 |
Wheels are prioritized because they are directly exposed to the warehouse floor environment, constantly enduring pallet impacts, friction from uneven surfaces, heavy loads, and wear from repeated driving. They also come into contact with oil, dust, and various debris.
Unlike electronic components, wheels are predictable wear parts with clear wear patterns, making replacement cycles easier to estimate. Therefore, distributors should prioritize them in inventory planning, focusing on stocking EP F4 drive wheels, load-bearing wheels, swivel wheels, as well as wheel bearings, wheel hardware, and matching mounting components.
It is important to note that you should not stock only a single specification of EP F4 wheels. This model may have size variations due to production versions, equipment configurations, and aftermarket demands. Before stocking in large quantities, be sure to verify the wheel diameter, width, bore diameter, bearing specifications, and installation configuration.
The battery is another important inventory category for EP F4 distributors.
The standard F4 uses a 24V/20Ah lithium-ion battery, and EP's current product information emphasizes the removable battery configuration. The F4 can be configured with multiple removable batteries to support longer operating periods.
 |
 |
Batteries are crucial for pallet trucks; battery failure directly causes equipment downtime. For fleet operators, the losses from equipment downtime often far exceed the cost of replacing the battery itself. Common battery failures include capacity degradation, reduced range, abnormal charging, damaged battery casing, and connector failure. This also involves replacing batteries in older equipment and meeting the need for spare batteries in multi-shift operation scenarios.
Batteries are a high-priority inventory category, but require meticulous management. Because the value of a single battery is higher than most consumable mechanical parts, distributors should not overstock.
A more prudent approach is to maintain small-batch stock of popular models confirmed in the market, replenishing dynamically based on actual orders. Before receiving goods, it is essential to verify the battery voltage, rated capacity, dimensions, connector type, BMS communication requirements, charger compatibility, and production version information.
A replacement battery is only useful when customers can charge it correctly.
The F4 specification identifies a 24V lithium-ion battery system, while current product information also lists a charger output of 5A for the standard configuration.
For this reason, battery chargers should be considered a complementary stock category.
Distributors may receive inquiries for:
Medium to High
Chargers are generally easier to store than batteries and can be useful as an add-on product.
However, compatibility must be checked carefully.
A distributor should not sell a charger based only on:"24V charger"
Instead, verify:
Battery chemistry + charging voltage + charging current + connector + charging protocol
Control Components and Controllers
Electronic components should be approached differently from mechanical wear parts.
The F4 uses an electric drive system with a DC drive control configuration in the published technical specification. The standard specification lists a 0.75 kW drive motor and 0.5 kW lift motor.
Should distributors stock controllers?Yes—but not necessarily in large quantities.
Controllers are typically higher-value and lower-frequency items compared with wheels, switches or bearings.
A better strategy is:
Low quantity + fast replenishment + accurate compatibility information.
For each controller SKU, record:
OEM part number
Replacement number
Voltage
Current rating
Connector type
Software/programming requirements
Compatible F4 version
Photos
Wiring information where appropriate
This can significantly reduce incorrect orders.
Tiller Head and Handle Components
The tiller head is one of the most frequently used operator interfaces on a pedestrian pallet truck.
Depending on the exact F4 configuration, possible service categories include:
These parts generally have a lower inventory cost than complete electronic assemblies, while an individual failed switch or button can make the machine difficult or impossible to operate.
For a distributor entering the EP F4 aftermarket, a reasonable starting structure would be:
This approach helps reduce inventory risk while still giving customers access to the parts they are most likely to need.
For distributors, specializing in one model can be useful—but customers often operate mixed fleets.
A forklift dealer may have EP pallet trucks alongside equipment from:
This means a supplier capable of providing EP F4 parts together with other forklift and pallet truck components can potentially become a more valuable long-term sourcing partner.
Instead of purchasing one wheel from one supplier, one controller from another and one battery from a third supplier, customers can consolidate more of their purchasing with a reliable B2B parts supplier.
Final Takeaway: Stock Smart, Not Everything
For EP F4 distributors, the goal should not be to fill the warehouse with every possible replacement component. The better strategy is to build inventory around real replacement demand, product reliability, replacement frequency and customer urgency.
As a professional forklift and pallet truck parts supplier, we provide a wide range of replacement parts for electric pallet trucks, forklifts and warehouse equipment. Looking for EP F4 spare parts for your business?
Contact us today to check product specifications, compatibility, availability and wholesale pricing. Build your EP F4 parts inventory with a professional B2B supplier and keep your customers' equipment running with less downtime.
